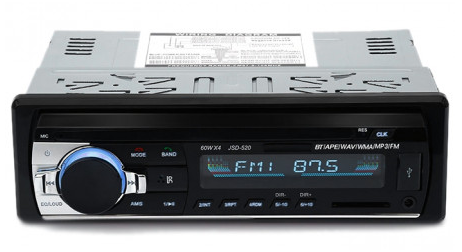

JSD520 Car MP3 Bluetooth Player

This entry was posted on August 1, 2019 by Cutebuy.

Details

Main Features:
● Bluetooth 2.0, supports hands-free function
● Supports advanced audio distribution profile
● Digital FM stereo radio, presets 18 stations, ranging from 87.5 to 108MHz
● Support USB / SD / MMC card reader
● Support modes: BT / APE / WAV / WMA / MP3 / FM
● Support Off-time display function
● Support folder function
● Support breakpoints and ID3 play
● Support key control and remote control
● MP3 randomized, 10 track up / down playback
● Electronic control volume treble, bass, balance and fader
● Multiple EQ scene selection: Jazz, rock, pop, classical, etc.
● L / R RCA audio output jacks
● 4-channel high power output ( 4 loud speakers )
● Remote control powered by 1 x 3V CR2025 batteries ( included )

Specifications:
FM radio
Tuning range: 87.5 - 108.0MHz
Sensitivity: less than 20dB
Stereo separation: more than 25dB
SNR: more than 60dB

Some playback
Music format support: MP3 / WMA
Display format: ID3 display
Distortion: less than 0.3 percent

Power supply
12V machine: 11 - 16V
Note: this machine is a 12V machine, not compatible with the 24V power supply

Audio
Operating temperature: -20 to 60 Deg.C
Quiescent current speaker impedance: 4 ohm
Frequency response: 20 to 20000Hz

Fuse
Red: 1A
Yellow: 15A

Bluetooth using method: first of all, search the Bluetooth by your phone, and after connecting it successfully, press the MODE button to switch the BT interface, then you can connect the MP3 player with Bluetooth.
Product size: 18.80 x 12.00 x 5.80 cm / 7.4 x 4.72 x 2.28 inches
Package weight: 0.552 kg
Package size: 22.00 x 18.50 x 8.00 cm / 8.66 x 7.28 x 3.15 inchesPackage Contents: 1 x JSD - 520 Bluetooth Player, 1 x Remote Control, 1 x Power Cord, 1 x English Manual, 2 x Disassemble Key
