There are no more than two ways to improve the signal of the router. One is to pull the network cable and the other is to bridge. Nowadays, most routers are wired and wireless integrated devices, that is, when transmitting wireless signals, they also have a wired LAN interface. Adding a router connected to the main router through a network cable transmits wireless signals through an extended router, which is equivalent to using multiple routers, or transmitting multiple wireless signals. The biggest advantage of the network cable is that the signal stability is good, the connection volume is large, and the disadvantages are also obvious. You need to pull a network cable. Instead, it uses signal coverage. The extension of the wds bridge method also increases the connection between other routers and the main router. After wireless bridging, the extended signal ssid is the same as the main route, which is equivalent to when the signal is large. I am all. The bridging method is not limited by the network, and the expansion is more flexible. The disadvantage is that the stability is not as good as the wired connection. It should be noted that to set the wireless router and the wireless router for relay, you need to set the same ssid and select a specified channel. At the same time, the two wireless routers for wireless relay can only use the wep mode for wireless encryption , Or not encrypted, here, it is recommended that you choose a router with better performance as the primary router, and a router with poor performance or an old-fashioned router as the secondary router (bridged router) The wds bridging method extension solution requires the router to support the wds bridging function. If the home network equipment does not support it, you can also use a WiFi signal amplifier, which is simply a WiFi signal relay. For example, the WiFi signal in the living room is very strong, but it can only be 10 meters in diameter. Go online within the range, then this time,We can install a WiFi range extender so that we can surf the Internet within 20 meters. Use a wireless signal amplifier to extend WiFi, no need to connect a network cable, you need to install a wireless signal amplifier on the nearby power strip where the signal is poor, you can amplify the original wireless signal, and the WiFi name is still the same.
WiFi has become the main way for our contemporary people to access the Internet, but in many cases, due to the relatively large house at home, WiFi cannot effectively cover all parts of the house. Here we will give you a detailed introduction on how to expand the coverage of WiFi.
Don't put the router in the corner of the room, you can choose to place it in the middle. Of course, this is on the premise of not affecting people's daily lives.
Choose high-power routers. Some routers may be aging and need to be replaced with new routers.

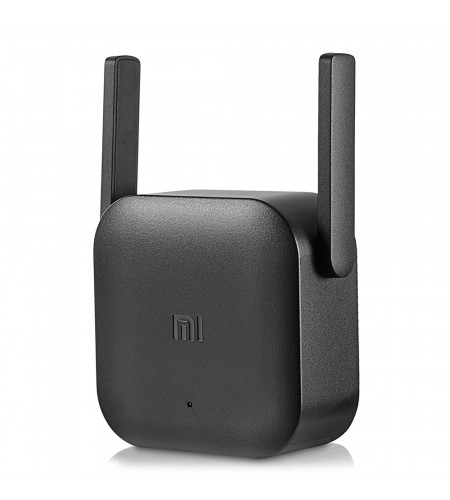

Using a WiFi range extender can effectively enhance the WiFi signal within the range.
Over the last
couple of years there has been a dramatic rise in the adoption of mesh network
systems for the home.
Fueled by poor Wi-Fi signals in rooms furthest from a wired router, a mesh network is one of the best solutions of gaining even, stable, strong wireless internet connectivity. And it needn't cost you a fortune.
Here we explain how it works, how much you are likely to have to pay and a few options to get you started.
What is a mesh network?
A mesh network is designed to potentially solve the problem with dead or poor zones in your home Wi-Fi. It uses multiple devices (generally called points) dotted around in different rooms to fill gaps in the wireless internet signal.
You use one main Wi-Fi point plugged into your home router through an Ethernet cable. Then, each subsequent device is placed a sufficient distance from the primary point to communicate successfully.
By doing so, each point fills an area with a stable Wi-Fi signal and, unlike Wi-Fi extenders, communicates with every other point in the system, adapting signal strength as needed. This then ensures that, no matter where in your home you wander, the signal you receive on your phone, tablet, laptop or other wireless gadgetry is the same.
What's more, you don't need separate login details for each of the points, the overall signal emitted from the points is treated the same by your wireless device, as if it comes from just one source.
For example, if you are in a bedroom where one of the secondary points is placed, it will transmit your data request to the nearest other point it finds and so-on. This also improves speed of connection in comparison, say, to a Wi-Fi extender that either requires a strong wireless signal from your existing router to perform well or works through a powerline connection which is less efficient and can impact on download and upload speeds.
Wi-Fi extenders traditionally have limited range - the same or even less than your Wi-Fi router - and adding more for greater coverage can actually cause conflicts in your signal as they do not speak to each other effectively. A mesh network communicates internally and often to ensure there are no conflicts.
How do you set up and use a mesh network?
Setting up a mesh network is generally a simple procedure.
Most manufacturers offer bundles that include a main point plus at least one
other device for another room.
The amount of additional points you need generally depends on how big your home is. Google, for example, claims that a smaller home or apartment will really only require one of its Google Wifi points - although you could probably just make do with your existing router in that case.
It says you need two for a medium house and three for a
larger home of around 170 to 420 square metres.
Other manufacturers quote similar numbers for their systems.
We've also found that some homes require more depending on
different circumstances - such as building materials and room locations. We
have, for example, four points running in a medium, three-bedroomed house
because we have a garden office that requires a point of its own. That way, we
also have solid, stable wireless internet connectivity in the garden itself.
Most mesh network brands will supply a free iOS or Android
application with their devices, which aid set-up and give you optional settings
to alter afterwards.
Many give you parental controls to restrict internet access
at certain times of the day, or block adult sites. You will also be able to see
how strong each point's connection is and the devices currently connected.
One thing to remember is that, with the mesh network you
choose taking over wireless internet duties, you do not need Wi-Fi enabled on
your router too. Indeed, it could even conflict with the primary point's
signal.
Most router manufacturers offer the option to disable Wi-Fi
and turn it into a modem instead. This is generally called "modem
mode" and you need to check your specific router's instructions how to
turn it off. Also make note of how to turn it back on again, in case you change
your mind at a later date.
How much will a mesh network cost?
As we've said above, the amount of devices needed for a
great, wide signal depends on the size of the home it is going into. Prices
also vary amongst the manufacturers, with some costing hundreds for a decent
mesh setup.
Two of the biggest systems on the market, Google Wifi and Netgear Orbi, will set you back from £230 for two devices. You then have to buy additional points to expand the network further, which will cost from £130.
In both cases, you can buy a bigger starter bundle to save
some cash. For example, three points in Google's own system will cost £330 - a
saving of around £30 when bought separately.
BT's Whole Home Wi-Fi system is a touch cheaper, with a twin pack available at £130 and other bundles being available. It also works with any broadband service in the UK, not just BT's own.
Another route is to pay a monthly subscription. Newcomer to the UK, Plume, has introduced its system both through British broadband operator TalkTalk and as a separate offering for people with other ISPs through its online storefront (it is also available in the US).
Instead of purchasing a starter bundle, TalkTalk broadband
customers can sign up for monthly membership at £9 per month and get two
SuperPods as part of the subscription. Additional devices cost £69 each.
Those with other broadband suppliers can subscribe for £99
per year, with a starter bundle of SuperPods and the all-new PowerPods
available from an extra £99.
What mesh network systems are available?
There are several big brand mesh network solutions available
to consumers in the UK. Here are some of the systems you might already have
heard of.
Google Wifi
Google's mesh network devices are simple and small enough not
to stand out too much in the rooms in which they are placed.
They are uncomplicated and a doddle to set-up, although the
included smartphone application doesn't have as many options as those from
rival manufacturers. Still, it is a remarkably simple system to set up and use,
albeit at the higher end of the price scale.
BT Whole Home Wi-Fi
BT's system is one of the least expensive when you need more
than a couple of devices for your home. It also works with all broadband
networks, not just BT's own.
It gives a wide wireless signal range although each station
(point) is a little larger than some rivals and will therefore be clearly
visible in your home.
Netgear
Orbi
Netgear's solution is a little wider ranging that some of the
others here in that it comprises different types of devices, so you can choose
the ones that suit your situation best.
You can get an actual replacement router as part of the
range, for example, or devices that offer different wireless internet speeds at
different price points. There are even some models that plug directly into wall
power points to remove wires altogether.
Many of them also support Alexa and Google Assistant.
TalkTalk was first to bring Plume to the UK, and continues to range an offering for its own broadband customers. However, Plume now also offers its system separately, for customers who are with a different broadband supplier.
Plume is a newcomer to the British mesh network scene but is
already well-established in the States. The system comprises SuperPods and
all-new PowerPod devices that, like one of the Orbi equivalents, plug straight
into a wall socket. You only need to physically wire the primary Pod to your
home router.
As we've explained above, the main difference with Plume is
that it works on a subscription basis rather than upfront payment.
Amazon is currently in the process of buying mesh Wi-Fi company Eero although the deal hasn't gone through quite yet.
The Eero system is similar to others in that it is easy to
set up out of the box and is designed to adapt to user scenarios without you
even noticing. It is US only at the moment, however, so it will be interesting
to see if Amazon has plans to extends its reach to other countries, including
the UK.
It's one to keep an eye on for sure.
Others
The systems listed above are only a few that are already
available or will be soon. There are plenty of others that are also worth
checking out if you plan to make an investment in improving your home wireless
internet connectivity.
The Linksys Velop, Asus Lyra, D-Link Covr and TP-Link Deco systems are also all worth examining too before opting for one over another.
They don't work across brands, so once you choose one you
will need to stick with it or start again and that could be costly. So choose
wisely.
KR43ED WiFi Range Extender Wireless Router Repeater
Details
Main Features: • WiFi speed up to 300Mbps, coverage area up to 300m • Ethernet port allows the extender to act as a wireless adapter to connect wired device • Easy to install and use, small size and wall-mounted design make it easy to deploy and move with flexibility • Input: 110 - 220V • Material: ABS + PC • Transmission speed: 300MpbsType: Repeater,Router Router Connectivity Type: Wireless Transmission Rate: 300Mbps Speed of Ethernet Port: 300Mbps Network Protocols: IEEE 802.11b,IEEE 802.11g,IEEE 802.11n Wireless Standard: Wireless AC Wireless Security: WEP WiFi Distance : 300m LAN Ports: Under 2 ports Max. LAN Data Rate: 300MbpsDC Port: No Working Voltage: 110 - 220V Language: EnglishPackage weight: 0.176 kg Product size: 10.00 x 9.00 x 7.00 cm / 3.94 x 3.54 x 2.76 inches Package size: 11.50 x 11.00 x 8.00 cm / 4.53 x 4.33 x 3.15 inchesPacking List: 1 x WiFi Range Extender, 1 x English User Manual
